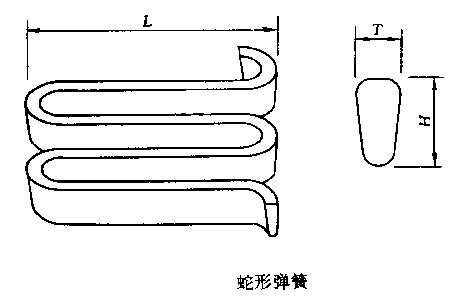

聯軸器彈簧又名蛇形彈簧。蛇簧聯軸器扭短範圍為26-270000N.M。
Coupling spring, also known as snake-like spring. Grid Coupling twisted short range 26-270000N.M.
蛇簧聯軸器特點：以蛇形彈簧為彈性元件，在具備了較強彈性的同時，較大地提高了蛇簧聯軸器傳遞扭矩，廣泛應用於重型機械及通用機械場合。
Grid Coupling Characteristics: A snake-like spring as the elastic element, the availability of a strong flexible, while greatly improved Grid Coupling torque transmission is widely used in heavy machinery and general machinery occasions
·這種經過特殊工藝處的蛇形彈簧，具有很長的使用壽命
·蛇簧聯軸器允許轉速較高，在軸向、徑向和角向具有良好的補償能力
·蛇簧聯軸器承受扭矩較大，適用於重型機械及通用機械場合
·多種軸孔形式：鍵槽、花鍵、錐孔、脹套
* This special process through the Office of the snake-like spring, with a long service life
* To allow a higher speed, in the axial, radial and angular has a good ability to compensate
* Grid Coupling to bear a larger torque for heavy machinery and general machinery occasions
* A variety of axle hole forms: keyway, spline, tapered bore, taper-lock
